Fitting aftermarket seats

[steveukv6]

I will be fitting some new seats within the next 2 weeks and need to know my options regarding the airbag.

1. The airbag light will come as my new seats don't have airbags. The sensors under the seats will be unplugged.

2. Can i go to the stealers to have the dash light switched off using the clip computer?

Or do i need to get the resistors aswell? If so which 1s do i need and where do they go?

Any help from you guys/galls would be great [smilie=bowdown.gif]

Steve



[ColinG]

dude...which seats you ordering??

best option is to get the resisters IMHO



[Anonymous]

Did you buy those seats in the other post, the TT ones, they are awasome, I am seriously considering them as the V6 seats are too low in the shoulder for me



[DennisV6]

You just need to pop into maplin or any other electronics specialist and get some 3 ohm resistors,

This is for the Mk2 Clio owners only.

Once you have set an airbag or pretensioner off no other airbags or pretensioners can be set off. The computer is useless the light will stay on on the dash.

If you have had an airbag or pretensioner activated you have only a few ways of getting rid of the light.

1) New airbag module (£150 to £350 depending what model you have) then Renault to program it to your car. Also replace the side impact sensors. Then either
a) Put a resister in the loom to make the airbag computer think a airbag is present. (see later notes)
b) Put a new airbag in.

The Clio detects the airbags being connected by checking the resistance of wires in the of the airbags.

So long as the resistance is in the correct range then no warning light will be set off.

If you disconnect any of the airbags (so long as no other have been set off) all you need to do to stop the warning light coming on is stick a resister in the wiring looms to make the airbag computer think there is a airbag present.

The figures below are ones the airbags computers need to sence to think an airbag is connected.

Drivers airbag between 1.8 to 6.2 Ohms. This runs through the lines 1 and 2 of the airbag/pretensioners computers.

Passenger airbag between 1.8 to 4 Ohms. This runs through the lines 3 and 4 of the airbag computer.

Side airbags between 1.8 to 4 Ohms. Passengers line runs through the lines 34 and 9 of the airbag computer. Drivers line runs through the lines 8 and 33 of the airbag computer.

Pretensioner between 1.8 to 4 Ohms. Passengers line is marked D and is track 11 and 36 on the 30 track connector. Drivers line is marked C and is track 10 and 35 on the 30 track connector.

So long as the resistance is between these values above (I'd a resister value in the middle of each of these values) then no warning light will come on.

If you want to remove any of the above airbags the resisters need to be plugged into the following locations

Drivers airbag - There are two resisters you need. The airbags system works on a high and low pressure system so you need one resister for each line. If you remove the airbag you'll find 4 wires. One pair go from the orange connector to lines 6 and 7 on the cruise control/airbag connector. They are orange and grey in colour. They go to a black connector and exist the connector on the same colour lines. You can put the resister before or after the connector block though between the wires. These wires go into connections into the airbag computer in lines 4 and 29 (if you want to strip the center console off to save the weight/loose wires).
The other pair of wires go from the green connector to lines 9 (beige) and 10 (salmon) on the cruise control/airbag connector (Black in colour) then out of the connector on the same colour lines. These wires go into connections into the airbag computer in lines 5 and 10 (if you want to strip the center console off to save the weight/loose wires).

Passengers airbag - There are two resisters you need. The airbags system works on a high and low pressure system so you need one resister for each line. If you remove the airbag you'll find 4 wires. One pair go from the orange connector to lines 2 and 27 on the airbag computer. The lines are brown and blue respectifully.
The other pair of wires go from the green connector to lines 3 and 28 on the airbag computer. They are blue and brown respectfully.

Drivers side airbag - Under the drivers seat there a black clip with cable going in and out. The lines 2 and 3 (ie the orange and brown wires) are the ones you need to stick the resister in. The spare black line is the earthing wire.

Passenger side airbag - Under the passengers seat there a black clip with cable going in and out. The lines 2 and 3 (ie the Beige and Brown wires) are the ones you need to stick the resister in. The spare black line is the earthing wire.

Drivers side pretensioner - Under the drivers seat near the front there a grey clip with cable going in and out. The lines A8 and A7 (ie the orange and brown wires) are the ones you need to stick the resister in.

Passengers side pretentensioner - Under the passengers seat near the front there a grey clip with cable going in and out. The lines A8 and A7 (ie the orange and brown wires) are the ones you need to stick the resister in.

The airbag computer needs to be supplied with between 10.5 and 16 Volts otherwise a fault will be raised.

Clio 172 Cup owners don't have side airbags so if they change there seats then there is no trouble with warning lights (so long as they either leave there seat belts plugged in)

If you wish to remove your side airbags for aftermarket seats then you can either do as the above says regards sticking a fuse in the circuit or ask your local Renault dealer if they will adjust your cars airbags computer via there Clip laptops so that it thinks there isn't an airbag there (some of the the lower spec cars didn't have). However many dealers are will refuse to do this.

The airbags module decides if/how to fire the airbags depending upon a different set of conditions ie if you are belted in speed etc. The system detects if you are belted in via the black wire in the seat buckle. If you cut this wire then the computer thinks you are belted in all the time no warning light will ever come on telling you to do your belt.

If you want to swop your seat belts for harnesses then you will have to do either:

1) Remove the seat belt buckle from the car and stick the resister in the wiring loom.

2) Keep the normal buckle in the car and either
a) Cut the black wire on the buckle and make the car think you are always belted in.
b) When you are wearing a harness you will have to put a switch on the black wire so you can turn the light off so the airbags operates safly rarther than thinking your not belted in when you are.

Depending upon which airbags/pretention are set off you will also need to change.

If the pretensioner is activated the seat belts and pretensioner units much be replaced
If the drivers airbag is activated the stearing wheel must be replaced.
If the passengers airbag is activated the corss member lining must be replaced.
If the side airbag id activated then the seat frame must be changed.
Also it is important to check:
The inhibitor key, the keys which switches of the passengers front airbag ie the one you put your key in which is on the passeners door (this should read 400Ohms when the switch is open and 100 Ohms when closed).
The seat position sensor reads 400 Ohms when the seat is upright and 100 Ohms when reclined

There is a common problem with Clios with the the SERV and AIRBAG lights come on it usually happened in the first few month but older cars out of the 3 yr warently have had the problem. Its due to the fact that the wires under the seat don't make a good conection and they can give a reading of a resitance over 4 Ohms when they do this it causes the warning light to come on. A simple short term fix is to fiddle with the wires under the seat and the problem will go away.
On the early cars the solution is to look under each of the seats. You will see a grey connector.
On the passenger side disconnect it and cut the Blue and Brown wires off both sides. Then solder the Blue wire to blue, and the Brown to the other brown. Make sure you use insulating sleeves over the soldered connections..
Under the driver seat there are two pairs of wires in the grey connector. Only cut the Blue and Brown wires and solder them together as above. Then reconnect the connector.
On the facelift cars it is ONLY the passenger side connector that is affected.. So again cut and solder the Blue and brown wires.
There is a Renault technical note out though and it will be done under warently if you car is affected.



[k1ano]

Excellent info and write-up Dennis.

Destination Wiki me-thinks.

Martin



[Anonymous]

That is an award winning piece of literature



[TRW1]

Hell of a post.......



[Peter255]

biggest post EVER? [smilie=icon_eek.gif]

Peter



[Andy luvs V6s]

please tell me you copied and pasted that :shock:



[steveukv6]

Dennis - cheers for the awesome write up. I will be reading through it to the letter when i come to fit them real soon.

The seats are going in a mk1 v6 and am keeping the standard seabelts to start with, so i only have to mess about with 1 thing at a time- the seat airbags to start with. [smilie=badpc.gif]

The seats i have bought are Sparco Tourino 2 in silver and blue. However im gettin a guy from work to re-trim the bolsters in navy blue leather similar to standard mk1 colour. And maybe the centres 2 dependant upon price.

Once i get them back from (my friend at work) will get them fitted and some pics up. Only dropped the seats off today so maybe a week or so + fitting. Subframes have been ordered and awaiting delivery.

Will nip down to Maplins at the weekend then. :badgrin:

Dennis - Where does the resistor need to go in? Just at the end of the wiring? Little bit of soldering needed?

Cheers steve



[55 ren]

It was far too long for a simpleton like me to read, I have been told by several sources you just need to tell the ecu or whatever that they are not fitted, when i get mine done will find out



[k1ano]

you just need to tell the ecu or whatever that they are not fitted

I like your style, very conceptual thinking ... Details is for when you need to actually do it

Martin



[DennisV6]

I typed it into word ages ago (had to sit and copy it from a print out due to computer issues) and just copied it from there, so I suppose it was cheating a bit.

Sorry I know its alot to read but it certainly has all the info in there to turn the light out and even the annoying beep.

Dennis



[DennisV6]

Dennis - Where does the resistor need to go in? Just at the end of the wiring? Little bit of soldering needed?

Cheers steve

I just pushed them into the end of the connector in the right places and then taped it up securely, work perfect



[k1ano]

I have chucked the post from Dennis into the Wiki

http://www.v6clio.net/wiki/index.php?ti ... _Disabling

It is a fairly simple paste so may need to be tidied up as is the idea with Wikis ...

Martin



[big peaches]

are the driver airbag ones defo 3 ohm ? my light is on and i want rid..



[DennisV6]

I believe so it doesnt have to be exactly 3 ohms as long as its around th 3/4 mark it should work, Maplins didnt have any 3ohm resitors when i went in so got something like 3.4 or 3.3 and it done the job. :approve:



[steveukv6]

Nice 1 Dennis. Will be hopefully fitting them in a couple of weeks. Seats are still at the trimmers but he has assured me they have been started.

So won't be 2 long now :approve:

Steve



[steveukv6]

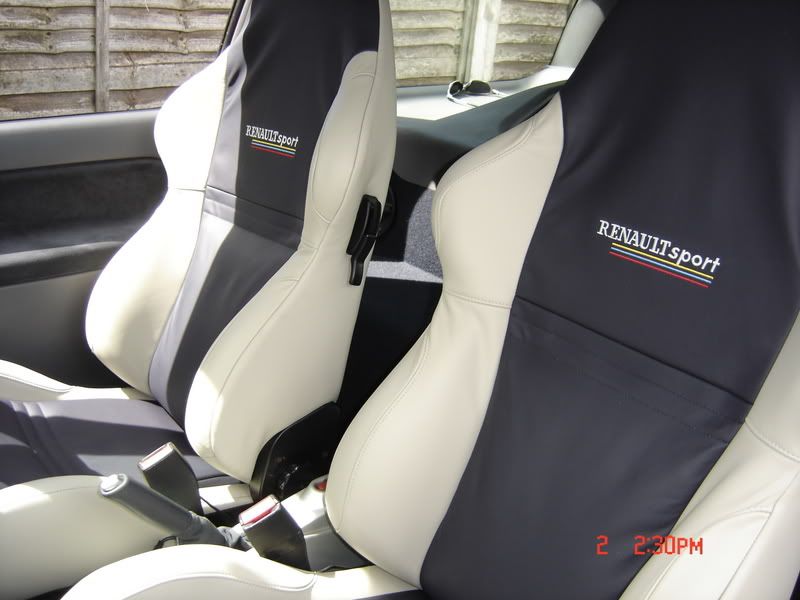

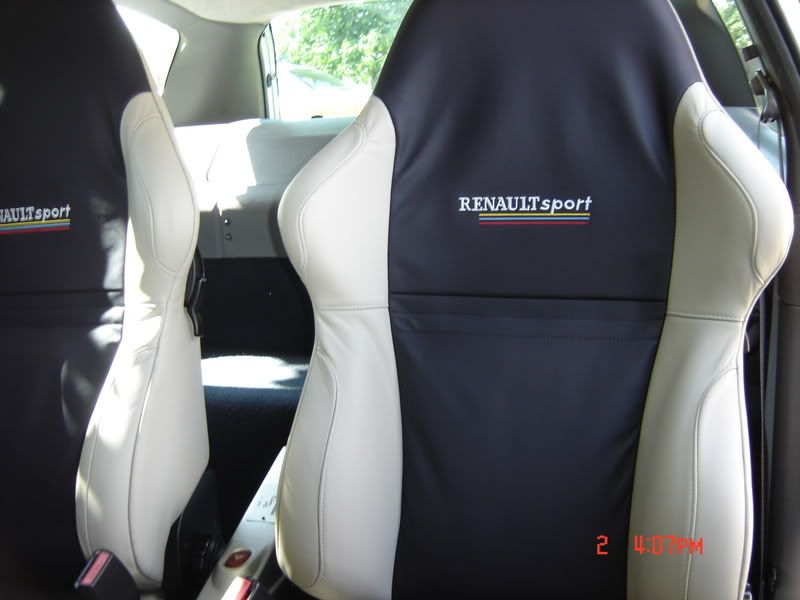

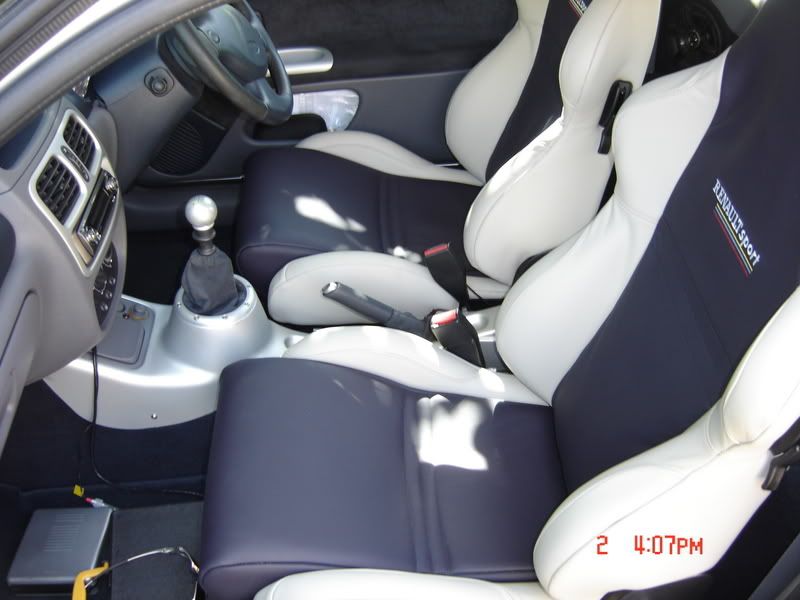

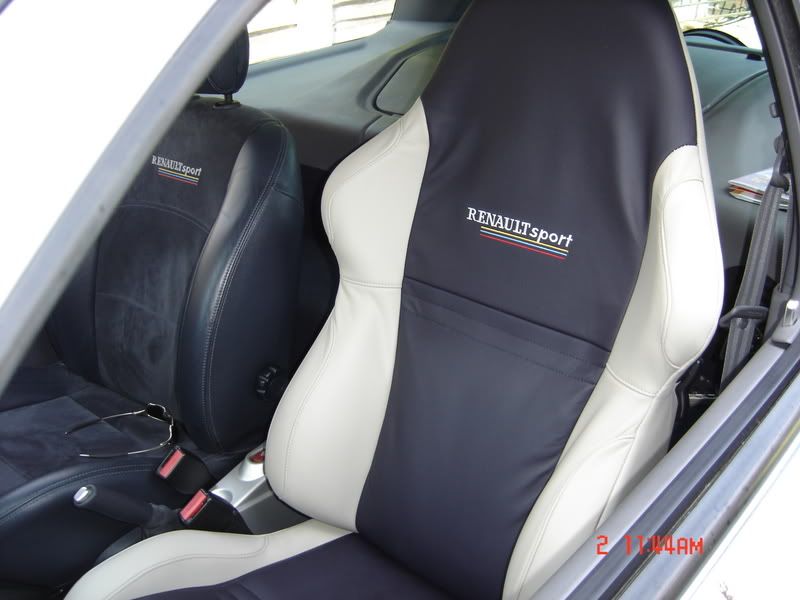

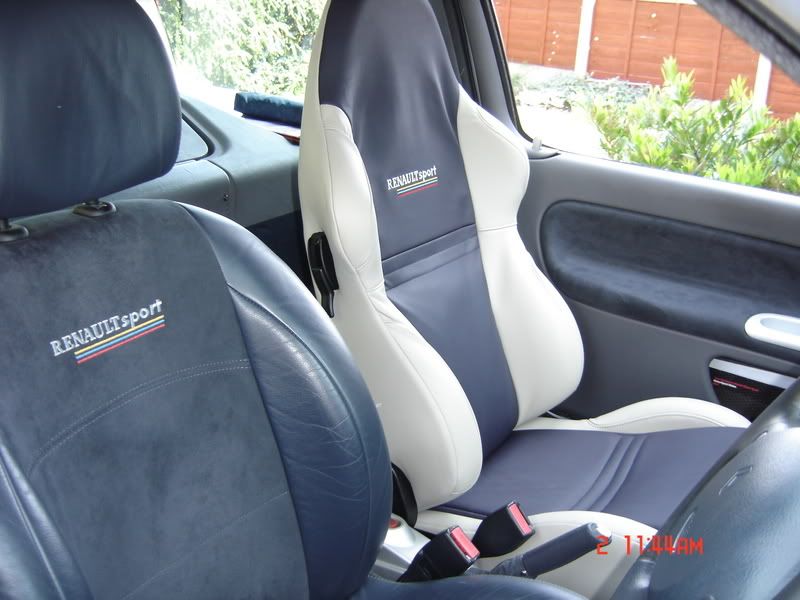

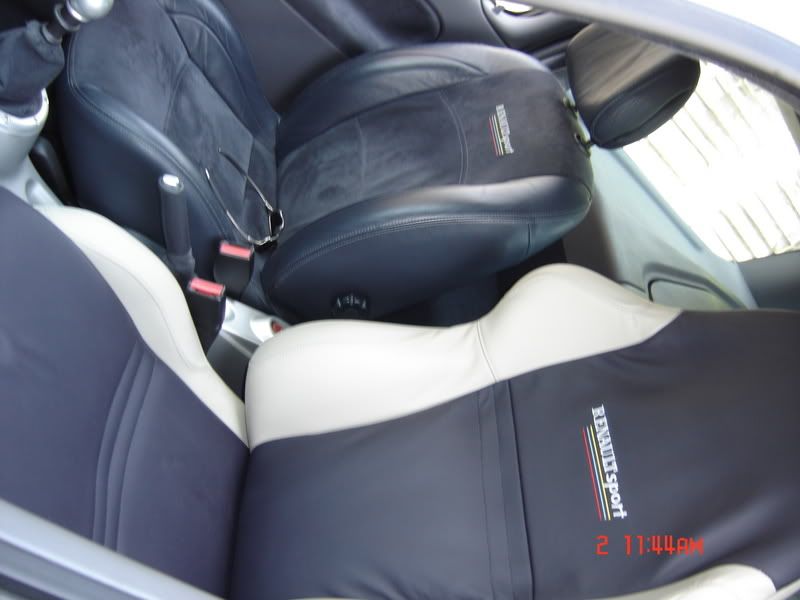

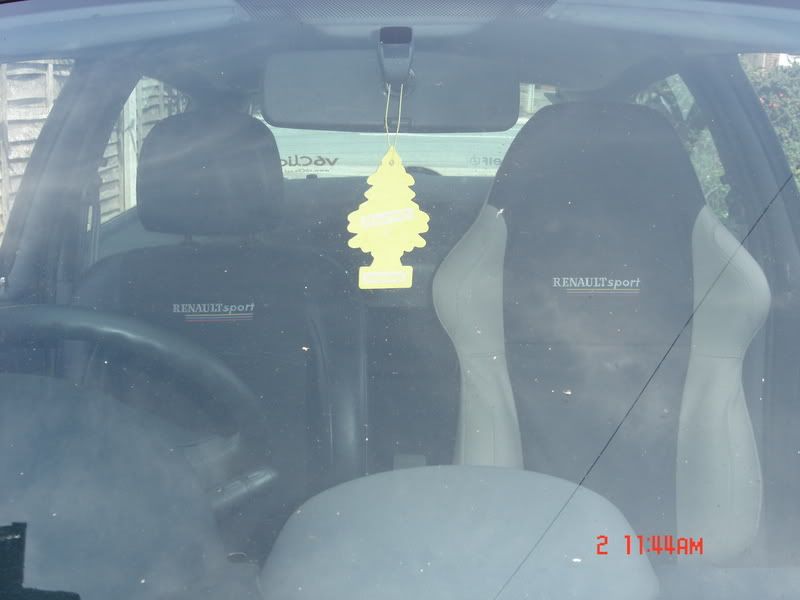

Ok guys - Got the seats from the trimmers fri night. Fitted them this morning. Thanks to Dennis for his original help with the resistors and also K1ANO (Martin) for the telephone assit.

So work that needs to be done before completion - Where the reno sport stitching is in, the leather will be cut out and the harness sorounds to go back in hence there it is a bit slack as the leather is floating over the holes. When the harness sourounds are in this will clip the leather taught. But I thought I would update you with a few pics.


Also the door cards are going to be trimmed in the same blue leather in the next couple of weeks to match.

See what you guys think????

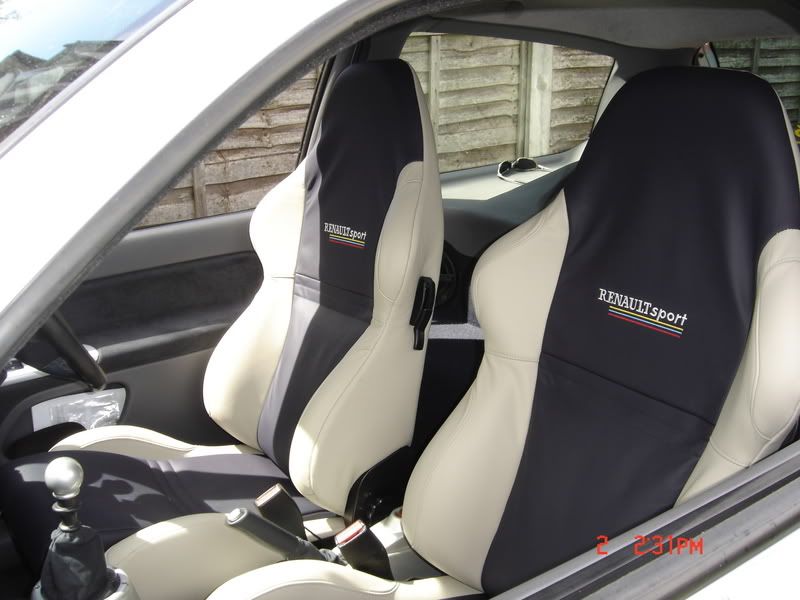

The seats were originally Sparco Tourino 2 seats. Added a old pic at the end so you can see how it will look with the sourrounds in place.

Regards Steve



[k1ano]

Nice work and the stitching of the the Renault Sport is very unique - top job

Martin
